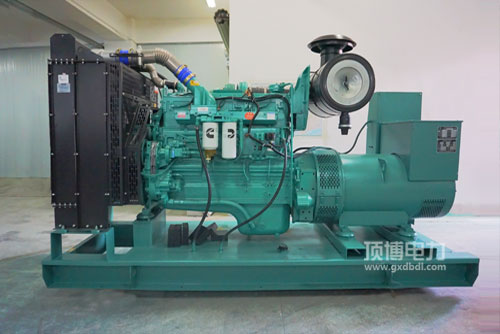

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用启驱力汽油条件性好: 为先进的汽油的操控软件系统化，独具特色的STC、ESTC 等级划分的操控软件系统化，特别的设计的连杆上方挥发室，高压电压喷射汽油，彻底的做雾化，挥发彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用启倾向瞬态使用性能出众: 完美无瑕的启倾向整体风格制作，搞好团结康明斯显著的EFC系統，保持精准程度高，初始化失败时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用打火机升工率高: 整体结构装修设计紧奏型.外观设计摆放合理合法，电脑运行顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷舱位 QSNT. QSK19. QSK38. QSK50满意中华非之路第3时期及亚洲Tier2. Tier 3排放出规范需要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具必得性好， 热车机程序运行及服务器维护养护等友盒，料工费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率位置 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L性能尺寸图 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净重量 Dry Weight   940kg

224-310KW康明斯带发电用汽车发行为的优缺点：质量小， 解压缩变高， 格栅板气氛供暖，最易打火，转移汽车导航电源适配器的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机款型	经常使用电机功率(kW)Prime Power	预备工作效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
